Premium Flame Retardant
Paint Booth Ceiling Filter Media Rolls
As a trusted 20-year air filter media manufacturer, Chuqi delivers industrial-grade synthetic filter media rolls, paint arrestor filters, and premium paint booth ceiling filter solutions specifically optimized for high-standard automotive and industrial spray booths. Our high-performance ceiling filter media offers the perfect balance of uniform air diffusion, high efficiency, and maximum safety. Whether you operate a high-volume auto body shop or a massive industrial coating line, our factory-direct products ensure unmatched filtration stability. Contact us today for wholesale volume discount prices!
| Feature | Specifications |
|---|---|
| Model Range | LW-650G / LW-600 / JW-560G / JW-500G / JWB-400G |
| Color | White |
| Weight | 400g/m² – 650g/m² (11.8 – 19.2 oz/yd²) |
| Thickness | 22mm – 24mm (approx. 0.87″ – 1″) |
| Max. Airflow Rate | 850 – 920 m³/h (500 – 541 CFM) |
| Initial Resistance | 25 – 40 Pa (0.10 – 0.16 in. w.g.) |
| Final Resistance | 450 Pa (1.81 in. w.g.) |
| Initial Efficiency | 93.10% – 99.90% |
| Nominal Face Velocity | 0.25 – 0.30 m/s (49 – 59 fpm) |
| Dust Holding Capacity | 386g/m² – 512g/m² |
| Max. Operating Temp. | 100°C (212°F) |
| Filter Class (EN779 / ASHRAE 52.2) | F5 / EU5 (MERV 8 – MERV 10) |
| Flame Resistance / Certification | UL 900 Class 2 / DIN 53438 F-1 |
Need specific technical specs? As a premier air filter media manufacturer, we support fully custom weights (GSM), thicknesses, and roll widths for our paint booth ceiling filter media. Contact us today to get factory-direct pricing for your precise specs!
Heavy-Duty Paint Booth Floor Filter &
Exhaust Media Rolls
| Feature | Specifications |
|---|---|
| Model Range | LH-200G / LH-260G / LH-280G / LH-320G |
| Color | Green and White (Air-entering: Green / Air-leaving: White) |
| Weight Range | 200g/m² – 320g/m² (5.9 – 9.4 oz/yd²) |
| Thickness Range | 10mm – 80mm (0.39″ – 3.15″) |
| Max. Airflow Rate | 4680 – 5400 m³/h (2754 – 3178 CFM) |
| Initial Resistance | 10 – 20 Pa (0.04 – 0.08 in. w.g.) |
| Final Resistance | 130 – 200 Pa (0.52 – 0.80 in. w.g.) |
| Arrestance Efficiency | 80.50% (High-Capacity Over-spray Capture) |
| Nominal Face Velocity | 2.50 m/s (492 fpm) |
| Dust Holding Capacity | 360g/m² – 470g/m² |
| Max. Working Temp. | 170°C (338°F) |
| Filter Class (EN779 / ASHRAE 52.2) | G2 – G4 (MERV 4 – MERV 8 Range) |
| Flame Resistance / Certification | UL 900 Class 2 / DIN 53438 F-1 Standard Compliant |
Need specific technical specs? As a premier air filter media manufacturer, we support fully custom weights (GSM), thicknesses , and roll widths for our fiberglass filter media roll. Contact us today to get factory-direct pricing for your precise specs!
Chuqi delivers high-margin paint arrestor filters and paint booth exhaust filter roll solutions engineered to maximize profitability for B2B distributors and suppliers. Our heavy-duty spray booth exhaust filter provides exceptional overspray holding capacity for all paint types, effectively reducing replacement costs and maintenance downtime for your clients. Partnering with Chuqi for your commercial paint booth floor filter supply—including our high-efficiency fiberglass filter media roll—guarantees stable factory-direct pricing, custom specifications, and reliable quality to help you win more repeat orders and grow your market share.
International Standards & Rigorous Quality Certifications
Full EN 779 / ISO 16890 Filtration Testing & DIN 53438 Flame Retardant Reports Provided
why choose chuqi？
FACTORY-DIRECT PAINT BOOTH FILTER MANUFACTURER:
20 Years of Engineered Excellence for Spray Booth Ventilation Systems
20 Years of Manufacturing Excellence
Direct partnership with a 20-year veteran air filter media manufacturer specializing in heavy-duty automotive and industrial surface treatment filtration.
Full Supply Chain Control
As a source factory, we manufacture our own ceiling filter media and floor filter roll products, eliminating middleman markups to secure maximum profit margins for global distributors.
100% Flexible Bulk Customization
We support fully customized weights, thicknesses, and roll widths for paint booth ceiling filter and paint booth exhaust filter roll orders to perfectly match your bidding specs.
Certified Standards & Quality
Fully compliant with EN 779 / ISO 16890 and DIN 53438 flame retardant standards, ensuring zero-risk quality compliance for global commercial spray booth bidding.
Looking for a Complete Spray Booth Filtration Solution?
As a vertically integrated air filter media manufacturer, Chuqi eliminates middleman markups to secure your maximum profit margins. We supply full factory-direct container loads and wholesale bulk rolls, guaranteeing a stable, high-quality supply chain for industrial spray booths and automotive refinishing shops worldwide.
Full-Process Delivery Protection
Reliable Supply & Rapid Delivery：
High-speed automated production lines position Chuqi among the leading air filter media manufacturer choices, guaranteeing stable mass production and short lead times for peak-season bulk orders.
Rugged Export Packaging：
Roll media is securely wrapped in heavy-duty, moisture-proof polybags and protective outer woven bags to withstand maritime humidity, heavy compression, and ensure zero-damage ocean freight.
Expert Global Logistics：
With over two decades of B2B export and customs clearance experience, we optimize container space for bulk roll orders to ensure safe, smooth, and cost-effective port or door-to-door delivery.
Frequently Asked Questions
Are your filters 100% Silicon-Free? How do you prevent cratering and "fish-eye" defects on paint surfaces?
Yes, all our paint booth media are 100% Silicon-Free. We enforce strict silicone-free controls throughout our entire raw material sourcing and manufacturing process. Our High-Tack Synthetic Ceiling Media uses an advanced, non-migrating full-tack adhesive that permanently locks in particles down to micro-levels without transferring chemical residues to the airflow, ensuring a flawless, crater-free finish.
How can buying factory-direct from you help us save "30%+ Procurement Costs" without sacrificing filtration efficiency?
As a factory-direct manufacturer with 20+ years of production experience, we eliminate all trading middlemen, passing the margins directly to you. We source high-grade raw polymers and glass fibers in bulk, running highly automated lines to lower production costs. This direct model allows us to offer premium-grade F5/EU5 ceiling media and high-density floor rolls at a 30%+ cost saving compared to standard local distributors.

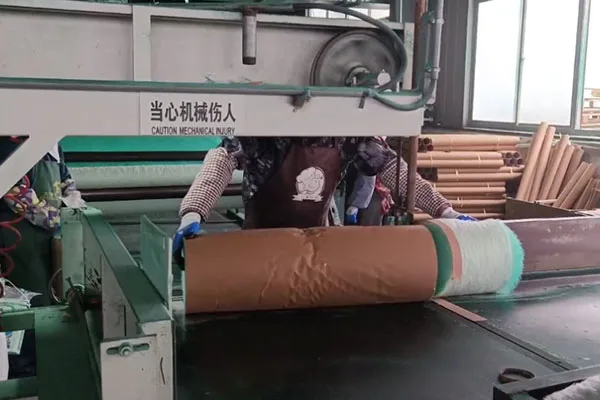

We have unique booth dimensions and custom frame sizes. Can you handle custom roll slitting and sizing?
Absolutely. We provide full OEM/ODM custom roll slitting and sizing services. Whether your paint lines require non-standard widths, precise roll lengths, or specific pre-cut pads, our factory can precision-slit rolls to your exact engineering specifications. This eliminates on-site labor costs, reduces material scrap, and speeds up your filter maintenance turnaround.
Why does your fiberglass floor media last longer and resist rapid surface clogging (glazing)?
Our Paint Booth Floor Rolls (Fiberglass Media) feature a specialized, high-elasticity progressive density structure. The fiber matrix is systematically woven to be open on the air-entering side and progressively denser on the air-leaving side. This allows paint overspray to penetrate deep into the media (deep-bed filtration) rather than instantly sealing the surface, resulting in a much higher paint-holding capacity and fewer production interruptions.
Can you manufacture custom sizes and provide private labels (OEM)?
Yes. Backed by our 20+ years filter media factory background, we maintain strict, reliable quality controls on every single batch. Our ceiling media holds a steady, calibrated low initial resistance and provides highly uniform air distribution across the entire plenum. Buying direct from the source ensures that the filter roll you receive this month performs identically to the one you receive next year, stabilizing your booth’s airflow balance.
Do you manufacture filter media capable of withstanding the high temperatures of paint curing ovens and spray-bake booths?
Yes, we engineer specialized High-Temperature Filter Media specifically designed for drying tunnels and spray-bake ovens. Made from high-strength, heat-resistant synthetic fibers or premium glass fiber matrices, these filters can withstand continuous operating temperatures up to 170°C. They maintain structural integrity without shedding fibers or degrading, ensuring that recirculated hot air remains completely free of particulates during the critical paint curing process.
Can your factory provide pre-filter media to help extend the lifespan of our expensive ceiling filters?
Absolutely. We offer a full range of high-performance Synthetic Pre-Filter Rolls and Pocket Filter Media designed for the intake air handling units (AHUs). By intercepting larger atmospheric dust particles at the primary stage, our pre-filters protect the downstream plenum, significantly extending the service life of your high-tack ceiling filters. Combining our pre-filtration with our ceiling media creates an optimized, cost-effective system that lowers overall annual replacement costs.
How does your factory handle packaging and container loading to minimize international shipping costs for bulk wholesale orders?
To maximize your freight efficiency, we utilize advanced vacuum compression packaging and heavy-duty, moisture-proof polybags for all our bulk wholesale filter rolls. This significantly reduces the volumetric shipping size, allowing us to fit up to 30% more material into each container. Upon arrival, the rolls easily unpack and quickly rebound to their original thickness and density without any loss in filtration efficiency, directly cutting your international ocean freight costs.
