The Paint Booth Floor Filter is used for surface coating in paint booths, offering high-quality paint mist filtration with an excellent capture rate. It efficiently absorbs excess free particles generated during painting, balances the pressure in the workspace, and serves as a typical environmentally friendly material.

Additional information

Model

LH-220G, LH-260G, LH-280G, LH-300G

Color

Green and White, Green and White, Green and White, Green and White

Weight

220G, 260G, 280G, 300G

Product Detilas

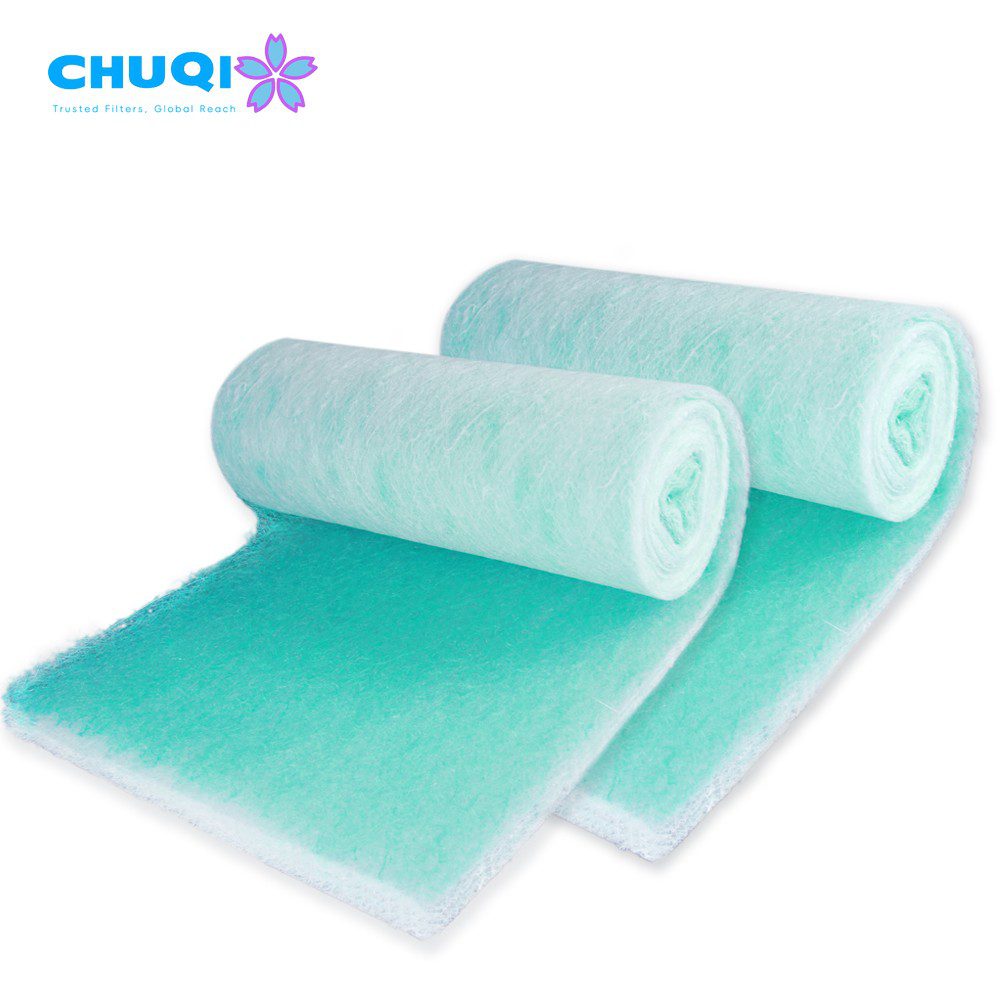

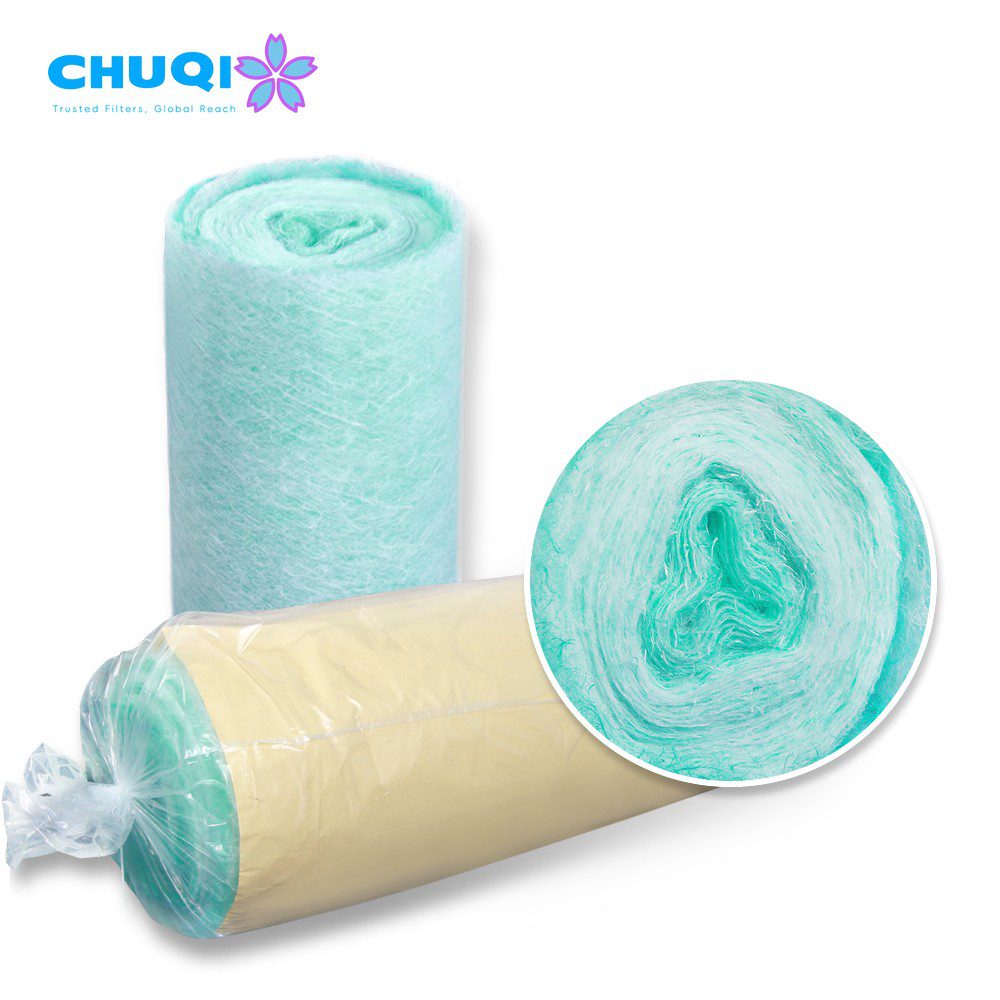

The Paint Booth Floor Filter is crafted from high-quality imported glass fibers. This environmentally friendly filter material, featuring a green and white design, has fine, orderly fibers that densify progressively. The intake side is green, and the exhaust side is white. Its low compressibility maintains its structure, optimizing its ability to store oil mist and dust. During operation, the interaction between the fiberglass and compressed air generates static electricity, effectively capturing excess free particles from paint sprays, thus reducing environmental pollution. Using this filter ensures cleaner recirculated air and more environmentally friendly expelled air.

Features

  • Environmentally Friendly Material: Made from green and white fiberglass, the filter is not only aesthetically pleasing but also meets modern environmental standards.
  • Gradually Densified Structure: The fine, orderly fibers densify progressively, enhancing filtration efficiency.
  • Low Compressibility: Maintains its shape, which is beneficial for storing more oil mist and dust.
  • Static Electricity Absorption: During operation, static electricity helps efficiently absorb excess free particles from paint sprays, reducing environmental pollution.
  • Optimized Indoor and Outdoor Environment: Ensures that the expelled air is more environmentally friendly and the recirculated air is cleaner.

Materials

  • High-Quality Imported Glass Fibers: The primary material is high-quality imported glass fibers, offering excellent filtration performance and durability.

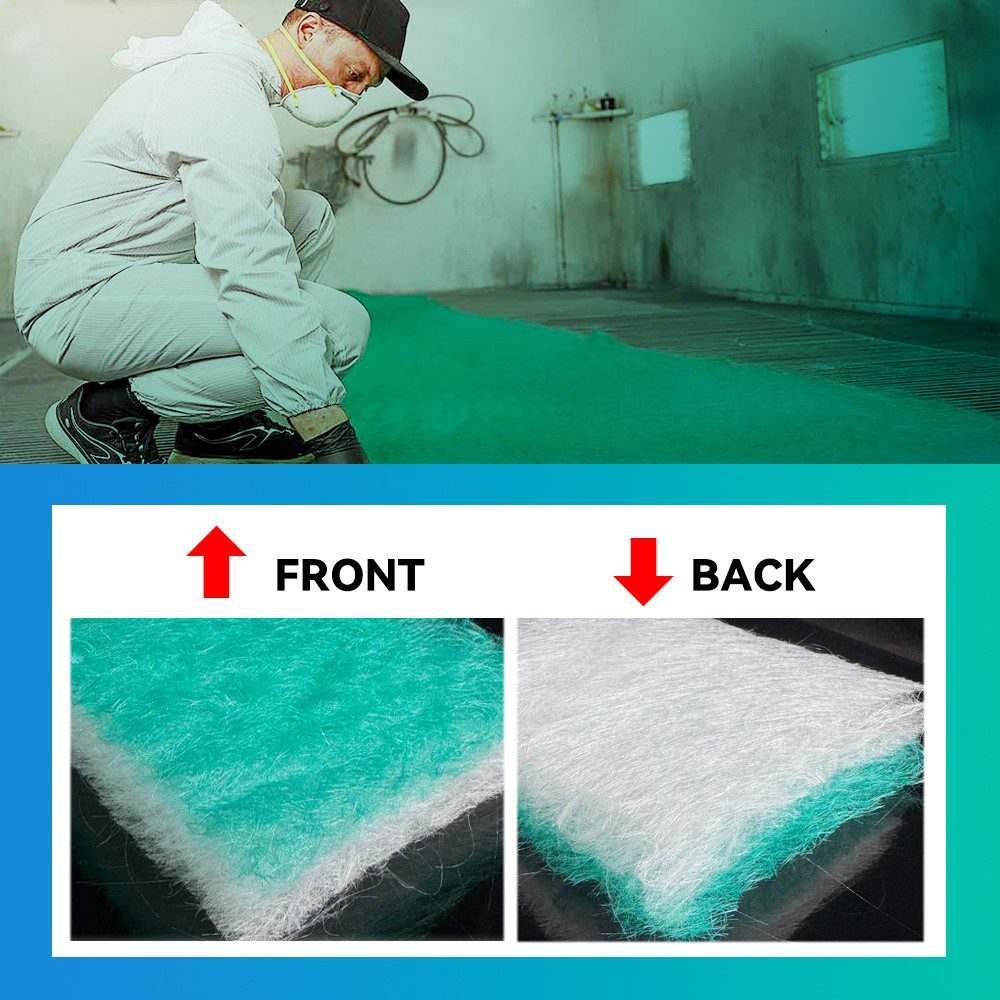

  • Green and White Fibers: Alternating green and white fibers enhance visual identification and indicate the direction of filtration.

In summary, the Paint Booth Floor Filter, with its high-quality imported glass fibers and environmentally friendly design, ensures superior paint mist filtration. Its unique structure and static electricity absorption capabilities enhance filtration efficiency and reduce environmental pollution. This filter is essential for maintaining a clean, healthy environment in paint booths.

Model LH-220G LH-260G LH-280G LH-300G
Color Green and White Green and White Green and White Green and White
Weight 220G 260G 280G 300G
Thickness 30±5mm 60±5mm 80±5mm 10±5mm
Max.Airflow 5400m3/h 5400m3/h 5400m3/h 5400m3/h
Initial resistance 10pa 20pa 12pa 15pa
Final resistance 130pa 150pa 180pa 200pa
Efficiency 80.50% 80.50% 80.50% 80.50%
Nominal velocity 2.50m/s 2.50m/s 2.50m/s 2.50m/s
Dust Holding Capacity 360g/㎡ 385g/㎡ 400g/㎡ 470g/㎡
Max.working Temp. 170℃ 170℃ 170℃ 170℃
Filtering Grade G3 G3 G3 G4
Flame resistance F-1DIN53438 F-1DIN53438 F-1DIN53438 F-1DIN53438
UL900-Class2 UL900-Class2 UL900-Class2 UL900-Class2
