Chuqi Air Filter

Air Filter

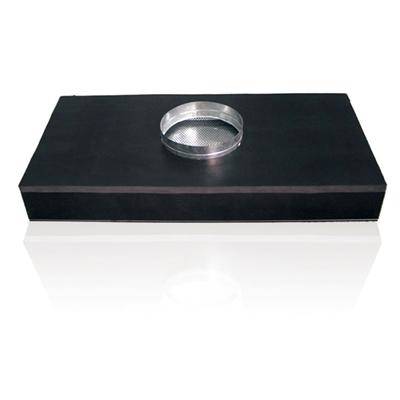

High-Efficiency Disposable HEPA Filter

Category

The High-Efficiency Disposable HEPA Filter provides superior air purification with a sturdy aluminum alloy frame and HEPA-rated glass fiber media, ensuring high-end protection in HVAC systems with minimal airflow resistance.

Additional information

Dimensions (mm)

610×610×125, 915X610X125, 1170X570X125, 1220×610×125

Rated Air Flow (m³/h)

600-1000, 800-1200, 1000/1500, 1100/1800

Efficiency (%)

99.999-99.99995

Product Detilas

This High-Efficiency Disposable HEPA Filter is engineered for critical environments where exceptional air purity is mandatory. Featuring a robust aluminum alloy frame and disposable HEPA filter filtration media, it captures up to 99.99995% of particles at 0.12µm. Designed for both commercial and industrial HVAC systems, it offers low resistance, high dust capacity, and can operate effectively up to 80°C and 80% humidity, making it ideal for maintaining stringent air quality standards under diverse operating conditions.



Features:

  • Low resistance, high dust holding capacity
  • Applied in air conditioning ventilation system for HEPA terminal filtration



Materials and operating conditions:

  • Frame: aluminum alloy frame (thickness: 125mm, 152mm)
  • Separator: hot-melt separator
  • Sealant: Gel-glue
  • Media: fiber glass paper H13,H14,U15,U16
  • Efficiency: 99.99%0.3um, 99.999%0.3um, 99.9995%0.12um, 99.99995%0.12um
  • Maximum Operating Temp./Humidity: 80℃/80%
Dimensions

(mm)

Rated Air Flow

(m3/h)

Initial Resistance

(Pa)

Efficiency

(%)

Duct Diameter¢
610×610×125 600-1000 ≤220 99.999-99.99995 ¢250
915X610X125 800-1200 ≤220 99.999-99.99995 ¢300
1170X570X125 1000/1500 ≤220 99.999-99.99995 ¢300
1220×610×125 1100/1800 ≤220 99.999-99.99995 ¢300
610×610×152 600-1000 ≤220 99.999-99.99995 ¢250
915X610X152 800-1200 ≤220 99.999-99.99995 ¢300
1170X570X152 1000/1500 ≤220 99.999-99.99995 ¢300
1220×610×152 1100/1800 ≤220 99.999-99.99995 ¢300

FAQ

ask us
anything

Our minimum order quantities vary depending on the model and specifications of the air filters and purifiers. We aim to accommodate both small and large orders to meet the diverse needs of our distributors.

Yes, we offer competitive pricing and volume discounts to support our distributors. Detailed pricing structures can be discussed directly with our sales team to ensure you receive the best possible terms.

Absolutely! We provide a range of marketing and sales support materials, including brochures, product datasheets, and digital content. These resources are designed to help you effectively market and sell our products.

The typical lead time varies based on product type and order size. However, we generally aim to dispatch orders within 2-4 weeks after confirmation. For more accurate timelines based on specific products and quantities, please contact our customer service team.
