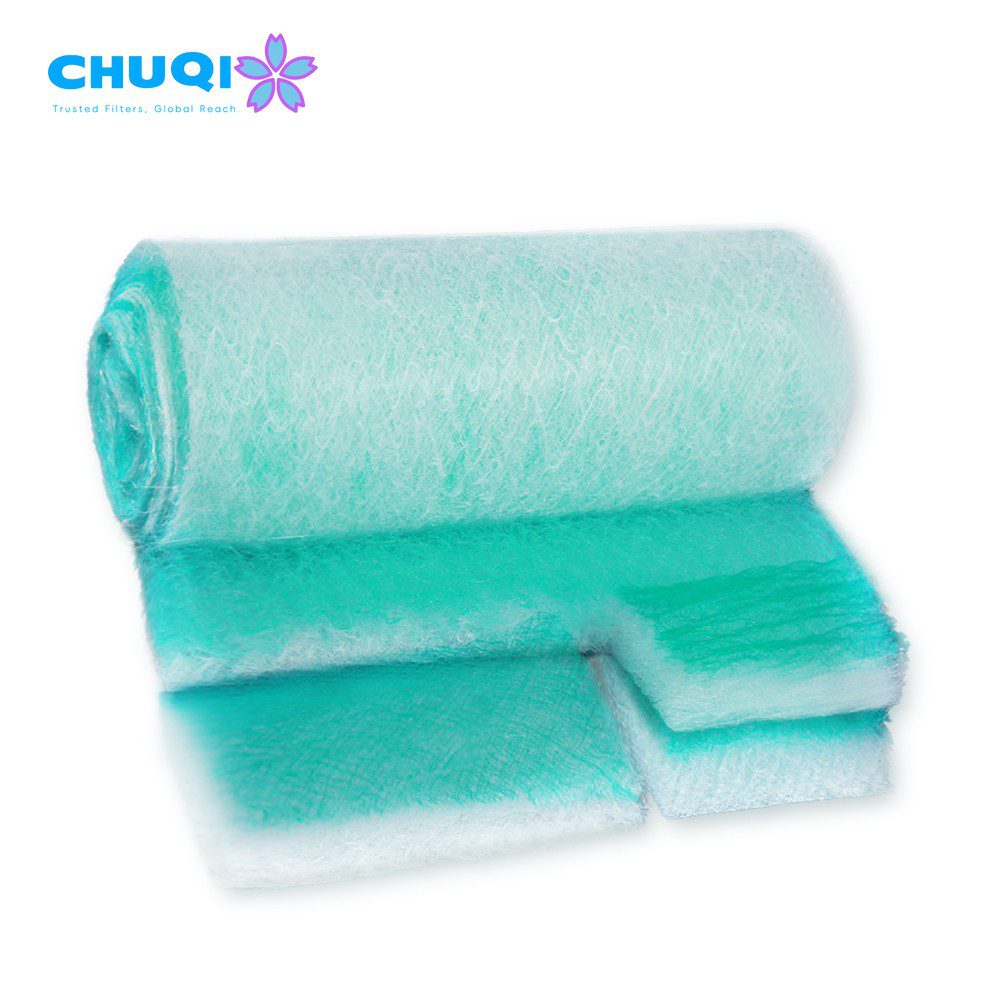

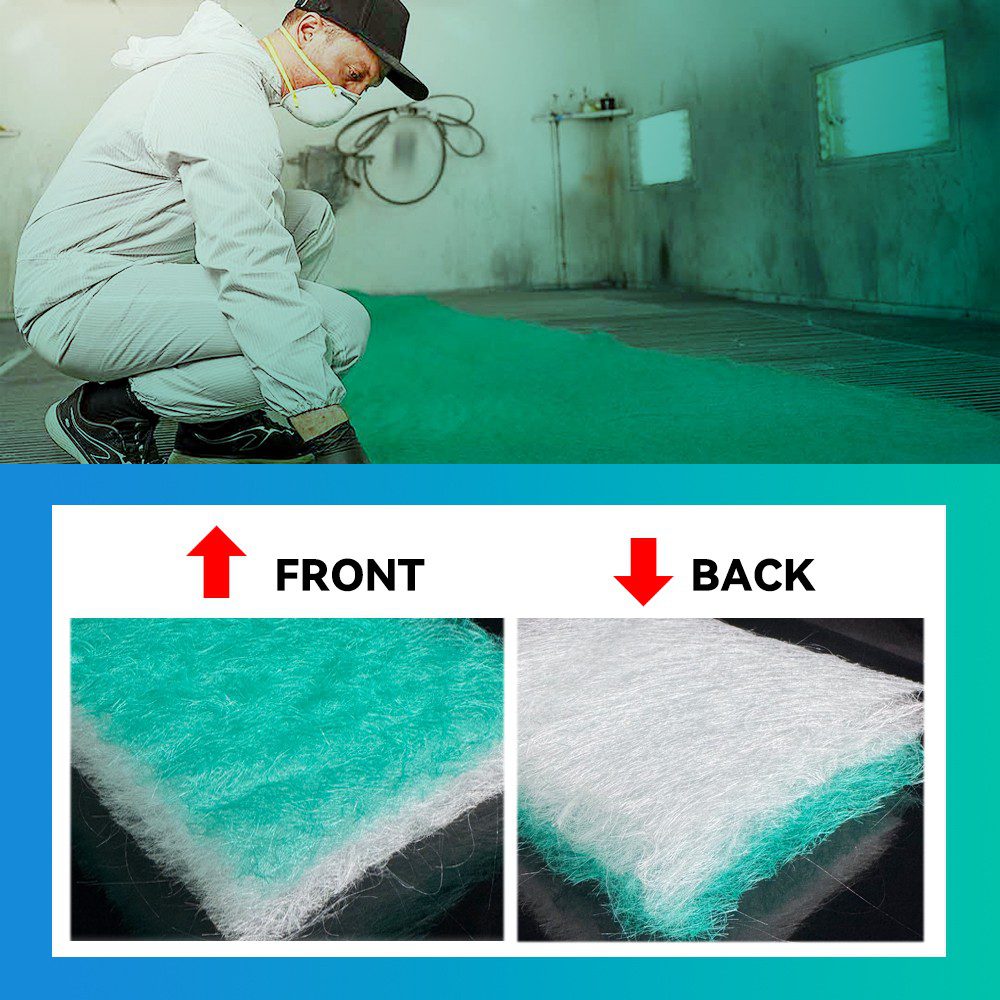

The fiberglass floor filter, also named as paint arrestor filter is a fiberglass mat with green and white coloring, specifically designed to capture overspray during painting processes. It is ideal for use as a floor filter beneath the grid in paint booths, effectively trapping overspray that falls to the ground.

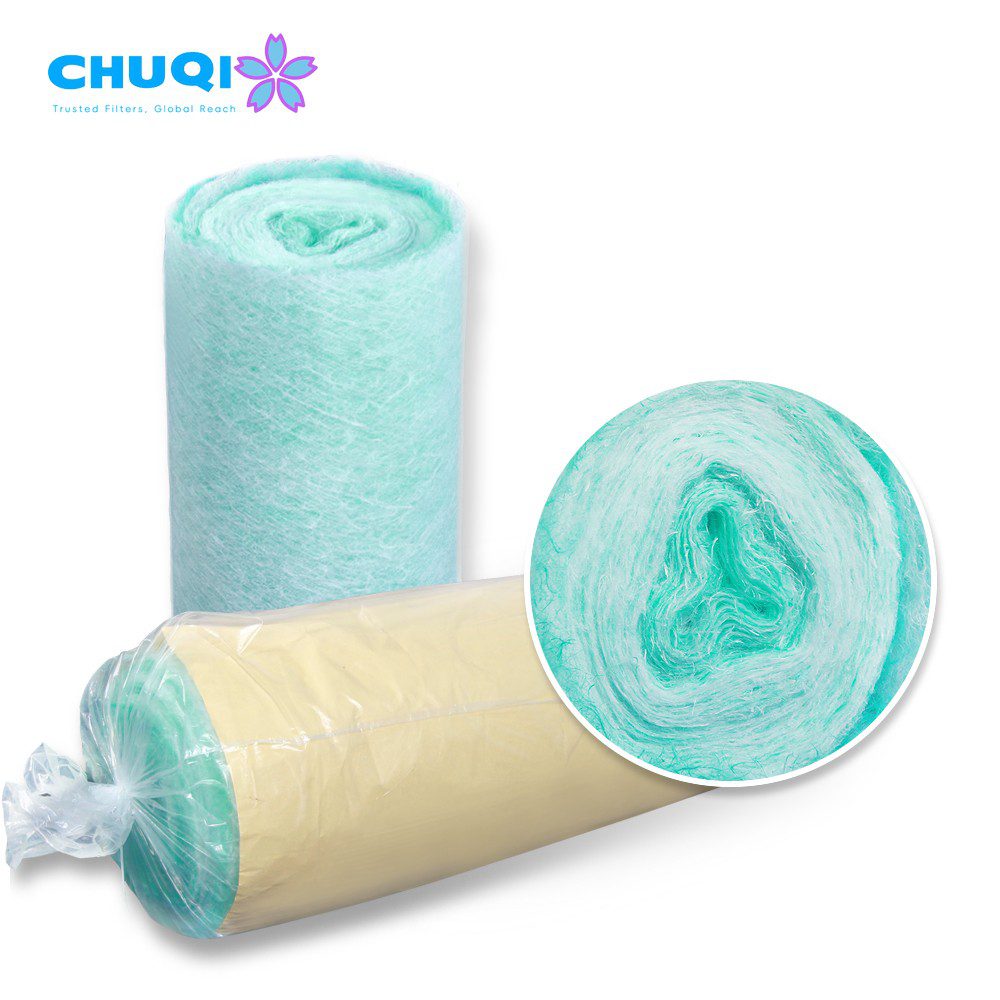

Made from long glass fibers and synthetic thermosetting resins, the filter features a progressively denser structure, allowing it to capture particles of varying sizes. The air intake side is green, and the air outlet side is white. The filter is available in rolls, each 20 meters in length, with multiple width options to suit different requirements.
Widely used in both industrial and automotive painting applications, this filter also serves many other industries. It is often paired with other air filters, such as pre-filters, to enhance overall air filtration efficiency.
-
- Weight/m²: 200g/m², 250g/m², 280g/m², 300g/m², 320g/m², 350g/m²
- Thickness: 10±5 mm， 30±5 mm， 60±5 mm， 80±5 mm Customized
- Available Size: 1m*20m, 0.8m*20m, 0.75m*20m, 1m*14m, 0.8m*14m, 0.75m*14m, Customized
- Air intake side: White
- Air outlet side: Green
- Composition: Long Glass Fibers
- Dust Holding Capacity: 360g/㎡， 385g/㎡，400g/㎡，470g/㎡，
- Heat stability: Stable up to 170°C
- Air volume:4680m³/h, 5400 m³/h
- Initial Resistance: 10Pa, 12Pa, 15Pa, 20Pa
- Nominal Velocity: 2.5m/s
- Efficiency: 80.5%
- Dust holding capacity: 3000g/m²
- Filter classification: F-1DIN53438 UL900-Class2
- Applications: Ideal for spray booths and HVAC pre-filtration
