Chuqi Air Filter

Air Filter

Categories

Air Filter

Discover our range of air filters, designed to provide superior air quality and protection in residential, commercial, and industrial settings.

HEPA Filter Box with Separator
Dimensions (mm)

305×305×150/220/292, 320×320×150/220/292, 484×484×150/220/292, 610×610×150/220/292, 630×630×150/220/292

Rated air flow (m³/h)

400/700/900, 400/700/900, 1000/1600/2000, 1600/2500/3200, 1700/2700/3400

Efficiency(Dust-spot) (%)

95-99.9995

Aluminum HEPA Filter Box without Separators
Dimension(mm)

610×610×50, 915×610×50, 1220×610×50, 610×610×69

Rated Air Flow(m³/h)

700~1500, 1000~2200, 1400~3000, 1000~2000

Efficiency(class) (%)

F6~F9, F6~F9, F6~F9, F6~F9

Pleated Filter
Dimension (mm)

295×295×46mm, 495×295×46mm, 495×495×46mm, 595×295×46mm, 595×495×46mm, 595×595×46mm

Rated Air Flow (m³/h)

1000m³/h, 1600m³/h, 2800m³/h, 2000m³/h, 3300m³/h, 4000m³/h

Efficiency (class)

F5-F9, 45-98%

Medium Pocket Filter
Dimension(mm)

495×295×500mm, 495×495×500mm, 595×295×500mm, 595×495×500mm

Rated Air Flow(m³/h)

1000m³/h, 1800m³/h, 1300m³/h, 2200m³/h

Efficiency (class)

0-50% F5, 60-70% F6, 75-85% F7, 85-95% F8 colorimetric

V-Bank Filter
Dimension (mm)

592×287×292, 592×490×292, 592×592×292, 610×305×292, 610×610×292

Rated Air Flow (m³/h)

1500, 2400, 3000, 1700, 3400

Dust Holding Capacity (g)

400, 700, 800, 450, 900

Activated Carbon Air Filter
Dimensions (mm)

295×295×46mm, 495×295X46m, 495×495×46mm, 595×295X46mm, 595×495×46mm, 595×595×46mm

Rated Airflow (m³/h)

1000m³/h, 1600m³/h, 2800m³/h, 2000m³/h, 3300m³/h, 4000m³/h

Efficiency (Class)

≥80% (Adsorption Efficiency), G3, G4

Primary Pleated Filter
Dimension (mm)

295×295×21/25/46mm, 495×295×21/25/46m, 495×495×21/25/46mm, 595×295×21/25/46mm, 595×495×21/25/46mm, 595×595×21/25/46mm

Rated Air Flow (m³/h)

800m³/h, 1300m³/h, 2200m³/h, 1600m³/h, 2700m³/h, 3200m³/h

Efficiency (class)

40%(Arrestance), G3/G4

High-Temperature Air Filter Box
External Dimensions (mm)

305X305X150/220/292, 320X320X150/220/292, 484X484X150/220/292, 592X287X150/220/292

Rated Air Flow (m³/h)

700~1500, 1000~2200, 1400~3000

Efficiency (%)

F6~F9

1 2 3

FAQ

Standard air purifiers and air filters are typically delivered within 7-14 business days after order confirmation. For custom air purification systems or large orders, delivery times may vary based on specific circumstances. We provide a detailed delivery time estimate upon order confirmation.

We accept various payment methods for our air purification products, including bank transfers, credit card payments, and Letters of Credit (L/C). The available payment options may vary depending on the order size and the customer’s geographical location.

Our air filters and purifiers are certified with ISO 9001, ISO 14001, ISO 45001, and also have CE certification and German DIN fire protection certification, meeting the high standards required by global markets.

We offer several shipping options for our air purifiers and filters to international clients, including sea freight, air freight, and courier services, tailored to meet various time and cost requirements. Our logistics team will provide the optimal transportation solution based on your specific needs.

We are committed to providing comprehensive after-sales services for our air purification systems, including installation guidance, operation training, technical support, and product maintenance and replacement. During the warranty period (typically one year), we offer free repair or replacement services for any issues due to manufacturing defects. Additionally, we provide extended warranties and regular maintenance services to ensure your air purifiers and filters operate reliably over the long term.

We implement strict quality control measures throughout the production process of our air filters and purifiers, from the procurement of raw materials to final product testing, all following international quality management system standards. Additionally, we conduct regular performance evaluations and continuous improvements on our air purification products.

Our air filters and purifiers are widely used across various sectors, including healthcare, industrial production, public facilities, and residential environments, providing professional solutions to improve air quality in diverse settings.

Our air purification products are categorized into preliminary, medium, and high-efficiency levels. Preliminary air filters are used mainly to capture larger particles like dust; medium efficiency filters can remove smaller particles like bacteria; high-efficiency filters are capable of capturing very small particles, such as viruses.

Air Filter Application

Efficient filters ensure aseptic conditions in production. For instance, knife-edge filters and FFU units purify air in pharmaceutical cleanrooms.

Top-hung filter cotton and fiberglass mist filters ensure paint quality and workspace cleanliness by capturing paint mist.

Food and Beverage Industry

Air quality is critical in food processing. Bag-type filters maintain environmental hygiene, preventing contamination.

Air filtration is vital for aircraft and spacecraft. High-efficiency filters maintain air quality, protecting passengers and systems.

Livestock Industry

In the livestock industry, air quality and environmental cleanliness are crucial for animal health. Filtering products play a vital role on farms and ranches, helping to maintain good air quality and hygiene, and reducing the spread of animal diseases.

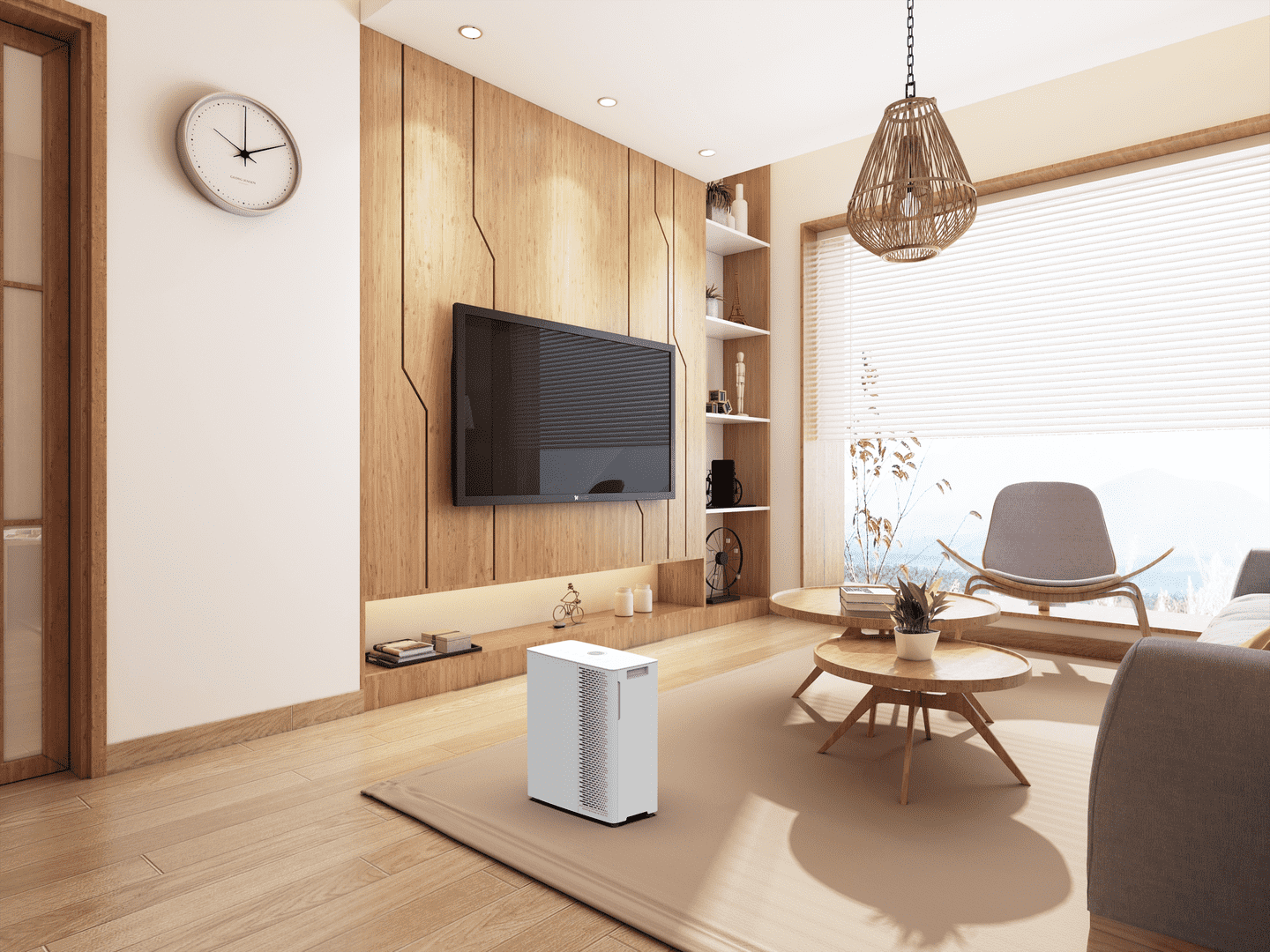

In residential settings, air purifiers are primarily used to remove dust, pollen, pet dander, smoke, and kitchen odors from indoor air, helping household members, especially allergy sufferers and asthma patients, breathe fresher air.

How to Determine the Quality of Air Filters?

Check the Efficiency Rating

Quality air filters meet or exceed industry standards. Seek HEPA for homes, MERV for commercial settings, ensuring efficient filtration.

Material Quality

Examine the materials used in the air filter. High-quality filters are typically made from durable, fine mesh materials that can trap small particles effectively.

Structural Integrity

Good air filters should have a robust and intact structure that can withstand the air flow without collapsing or deforming over time.

Certification and Compliance

Verify that the air filter has the necessary certifications and complies with relevant environmental and safety standards.
