In the era we live in, air quality is a growing concern. Whether in industrial production, health care, or electronic technology and other fields, we need a pure air environment to ensure the smooth progress of the production process and product quality. HEPA Filter is the guardian who silently protects the purity of air. Are you also looking for a high-quality HEPA Filter and worry about it?
Types of HEPA Filters

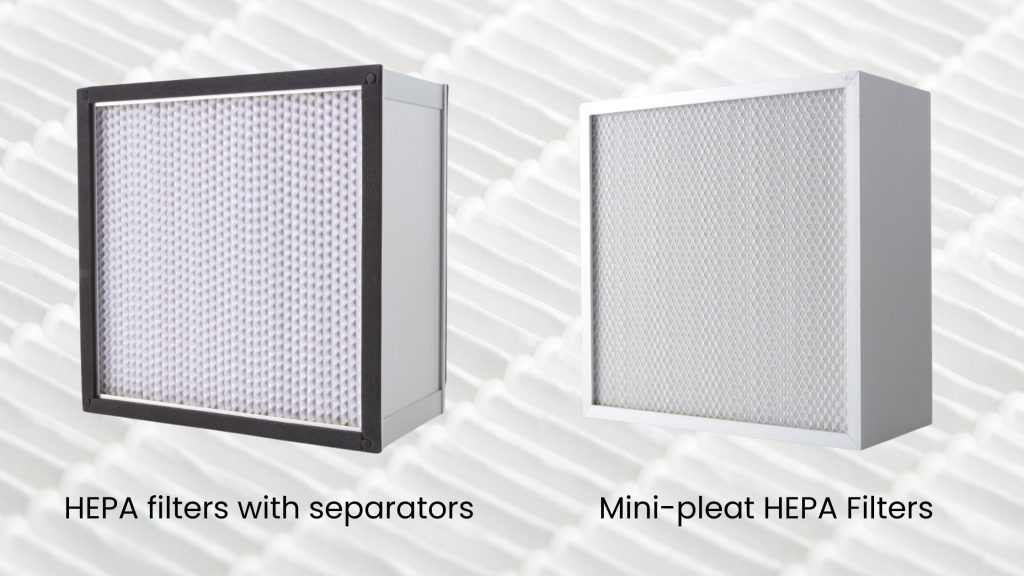

HEPA Filters are mainly divided into HEPA filters with separators and Mini-pleat HEPA Filters without separators. What are the differences between these two types of filters besides their appearance? Let me introduce them to you.
-
Structural Differences
HEPA Filter with separators uses corrugated aluminum foil corrugated board to support and separate the filter paper, and the channel is generally rectangular. This structure makes its whole more stable and can withstand certain pressure.
Mini-pleat HEPA Filters use hot melt adhesive or silk thread to separate and support the filter paper, forming a closely pleated V-shaped airflow channel. Its structure is more compact and can save more space under the same air volume requirement.
-
Different Performance Characteristics
In terms of filtration efficiency, both of them can reach a higher level, but Mini-pleat HEPA Filters may show a more uniform filtration effect in some cases due to its special structure.
In terms of resistance, Mini-pleat HEPA Filters usually have lower resistance, which can reduce the energy consumption of the ventilation system. HEPA Filters with separators have slightly higher resistance.
In terms of dust capacity, the V-shaped channel of Mini-pleat HEPA Filters has better uniformity of dust capacity, the overall dust capacity is relatively large, and the service life will be longer.
-
Applicable Scenarios
HEPA Filters with separators perform well in common environments that are not sensitive to temperature and humidity changes, such as general industrial plants. Their stable structure also makes them applicable in some occasions with certain pressure requirements.
Mini-pleat HEPA Filters are more suitable for clean rooms or ventilation systems with strict space requirements, such as chip manufacturing workshops in the electronics industry and high-end laboratories.
Performance Characteristics of HEPA Filters
HEPA Filters have many outstanding performance characteristics, which make them play an important role in various fields. So, what are the specific performance characteristics?
-
High Filtration Efficiency
The filtration efficiency of HEPA Filters is generally above 99.97%, which can effectively capture particles below 0.5µm, dust, and various suspended matters. Why can it have such a high filtration efficiency? This is mainly due to its advanced filter materials and structural design.
-
Low Resistance
While ensuring the filtration effect, the HEPA Filter has relatively low air passage resistance. How is this possible? On the one hand, its optimized structural design reduces the obstruction of airflow; on the other hand, the high-quality filter materials used also help reduce the resistance.
-
Large Dust Capacity
HEPA Filters can hold more dust and other impurities, which prolongs the service life of the filter. Do you know how it realizes the large dust capacity? This is closely related to its special structure and the characteristics of the filter material.
Real Case Sharing
HEPA Filters have excellent performance in practical applications. Let’s take a look at these real cases.
-
Chip Manufacturing Workshop of an Electronic Factory
In this workshop, the tiny particles in the air will have a serious impact on the quality of chips. After the installation of HEPA Filters, the air quality in the workshop has been greatly improved, and the yield rate of the chips has been significantly improved. What kind of HEPA Filter is used here? The answer is Mini-pleat HEPA Filters, whose compact size and high-efficiency filtration performance perfectly adapted to the needs of electronic factories.
-
Operating Room of a Hospital
The operating room has very high requirements for air sterility, and HEPA Filters with separators provide a reliable guarantee for the safety of surgery. How do the medical staff evaluate HEPA Filters? They said that the stable performance and high filtration capacity of HEPA Filters made them feel more at ease during the surgery.
-
A Food Processing Plant
The food processing workshop needs to prevent airborne dust and bacteria from contaminating the food. After installing HEPA Filters, the air quality in the workshop improved significantly, and the quality of food was also guaranteed. How do HEPA Filters ensure food safety? They create a clean production environment for food by effectively filtering impurities in the air.
How to Choose a HEPA Filter？
In the face of many HEPA Filter products, do you not know how to choose? Don’t worry, let me tell you some ways to choose.
-
Select According to the Application Scene
Different application scenarios have different requirements for HEPA Filters. For example, in the electronics industry, you need to choose a HEPA Filter with high filtration efficiency and no static electricity; in the pharmaceutical industry, you need to choose a HEPA Filter with sterility and no leakage. Which HEPA Filter is suitable for your application scenario?
-
Consider the Performance Parameters of the Filter
In addition to the application scenario, you also need to consider the performance parameters of HEPA Filters, such as filtration efficiency, resistance, dust capacity, etc. How do you judge the advantages and disadvantages of these parameters? You can refer to the product specifications and test reports provided by the manufacturer, and you can also consult professionals.
-
Choose Products from Regular Manufacturers
The quality of HEPA Filters is directly related to the purity of air and the safety of the production process. Therefore, choose the products of regular manufacturers. Zibo Chuchi New Material Co., Ltd. is a professional manufacturer of HEPA Filters, and the quality of our products is reliable and stable. Do you have confidence in our company’s products?
Maintenance and Care of HEPA Filters
HEPA Filters need to be maintained and serviced in the process of use, so as to ensure their stable performance and prolong their service life. Do you know how to carry out maintenance?
-
Regular Inspection
In the process of using HEPA Filters, it is necessary to regularly check their performance parameters such as filtration efficiency, resistance, and leakage rate. How often is it more appropriate to carry out an inspection? Generally speaking, depending on the use of different environments, regular inspection can be carried out to ensure that their performance meets the requirements.
-
Replace the Filter Correctly
When the resistance of HEPA Filters reaches twice the initial resistance or the filtration efficiency drops to a certain level, it is necessary to replace the filter. How do you replace the HEPA Filter correctly? Pay attention to the selection of products with the same specifications and models as the original filter, and replace them according to the correct operation method.
-
Cleaning and Maintenance
For some washable HEPA Filters, they can be cleaned and maintained regularly. How do you clean and maintain HEPA Filters correctly? Use special cleaning agents and tools, dry the filter after cleaning, and pay attention to the storage environment.
Conclusion
HEPA Filters, as the guardians of air purity, play an important role in various fields. Choosing a suitable HEPA Filter can not only improve production efficiency and product quality, but also protect people’s health and safety. As a professional HEPA Filter manufacturer, Zibo Chuchi New Material Co., Ltd. is committed to providing customers with high-quality products and services. If you have any needs regarding HEPA Filters, please feel free to contact us; we will be happy to serve you. What are you waiting for? Hurry up and take action!
